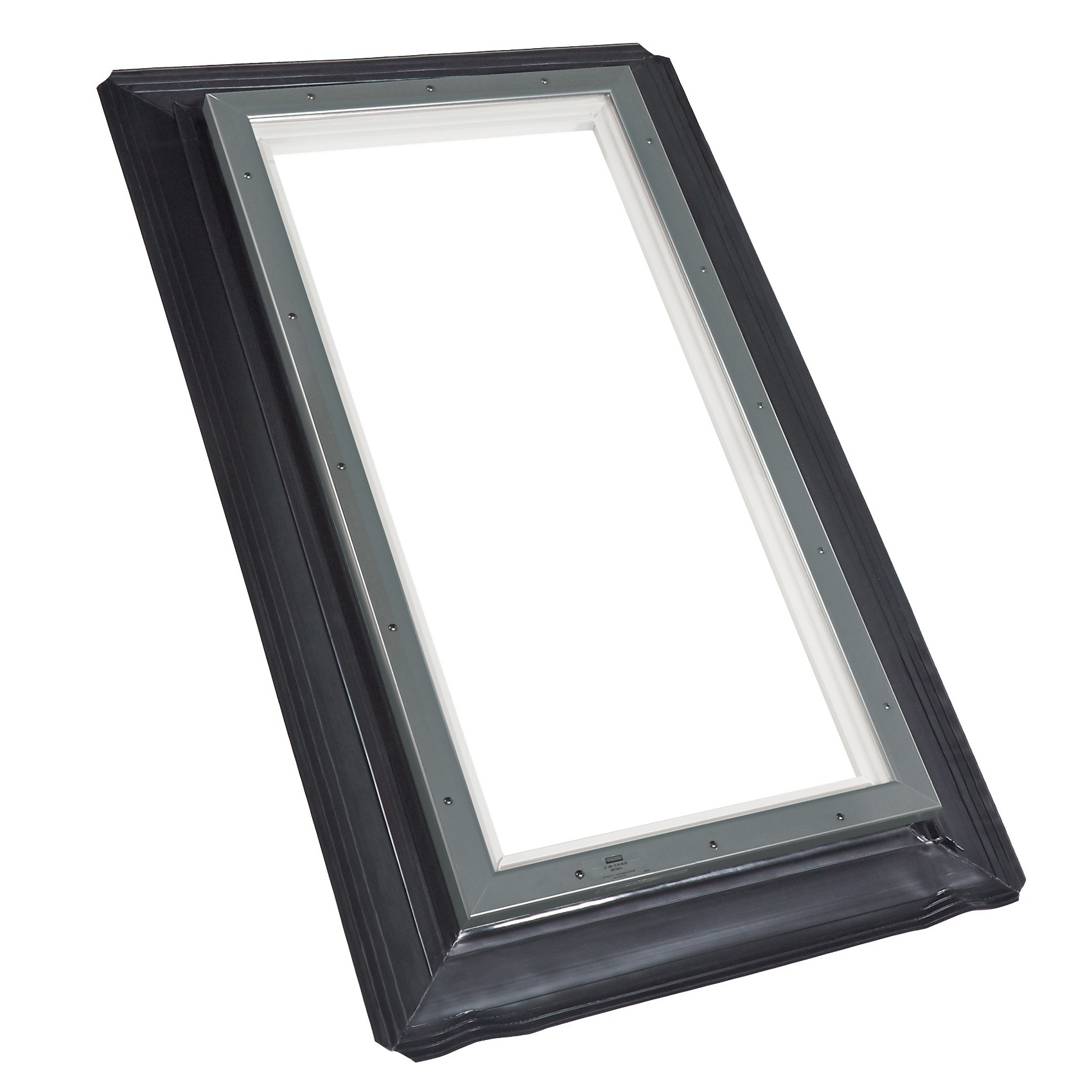

EF E-Class Fixed Skylights
Discontinued, available while supplies last- Fixed skylights are an economical choice for bringing in natural light from above
- VELUX Laminated Low-E3 Glass comes with a 10-year hail warranty against glass breakage
- Patented single profile vinyl extrusion with integrated Ultraseal flashing system ensures leak-proof performance
- Ready to be installed right out of the box - no mastic, step-flashing, or sealants required
- Integral tray allows for the removal of interior condensation
EF Skylight Sizes
| EF Size Code |
2238
|
2246
|
3046
|
4646
|
| Rough Opening WxH (in) | 221⁄2 x 381⁄2 | 221⁄2 x 461⁄2 | 301⁄2 x 461⁄2 | 461⁄2 x 461⁄2 |
| Maximum Flashing WxH (in) | 371⁄2 x 531⁄2 | 371⁄2 x 611⁄2 | 451⁄2 x 611⁄2 | 611⁄2 x 611⁄2 |
Specifications
Details
| Skylight Mounting Type | Deck Mount | Cladding Type | Aluminum |
| Required roof pitch (degrees) | 14-85 | Low-E3 | Yes |
| Returnable | 45-Day | Skylight material | Glass |
| UV protection | 99.9% | U-Factor | 0.45 |
Warranty / Certifications
| Product Warranty | 10-year limited | Florida Product Approval | 13303 |
| Insulated Glass Warranty | 20-year limited | Hail Warranty | Yes |
Info & Guide
California residents: This product can expose you to Nickel which is known by the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
