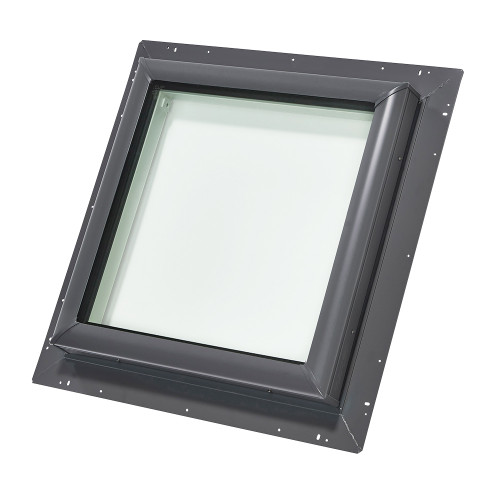

Fixed Self Flashed Skylights
Pre-installed metal self-flashed designed for use with roofing sealant-based installation on asphalt shingle roofs- Flashing joints are welded and painted for strength and durability
- VELUX QPF with Low-E340 Sun Protection Tempered Glass is Florida Product approved #13300.2
- VELUX QPF with Low-E340 Hurricane Glass (Impact glazing) is Florida Product approved #13300.3 for use in High Velocity Hurricane Zones (HVHZ)
- Streamlined exterior profile won't obstruct your roofline
- Integrated gaskets allow condensation to drain to the outside rather than into your home
FIXED SELF FLASHED SKYLIGHT FEATURES
Streamlined Profile
The streamlined exterior profile of VELUX fixed skylights does not obstruct the roofline.
Built-In Flashing
Features pre-installed metal pan-flashing, welded and painted flashing joints and protective aluminum cladding.
Add a Room Darkening Shade
Enjoy the benefits of better light control and improved energy efficiency.
QPF Skylight Sizes
| QPF Size Code |
2222
|
2230
|
2246
|
3030
|
3046
|
4646
|
| Rough Opening WxH (in) | 221⁄2 x 221⁄2 | 221⁄2 x 301⁄2 | 221⁄2 x 461⁄2 | 301⁄2 x 301⁄2 | 301⁄2 x 461⁄2 | 461⁄2 x 461⁄2 |
| Outside Flashing WxH (in) | 295⁄8 x 295⁄8 | 295⁄8 x 375⁄8 | 295⁄8 x 535⁄8 | 375⁄8 x 375⁄8 | 375⁄8 x 535⁄8 | 535⁄8 x 535⁄8 |
The cost to install the VELUX fixed skylight will depend on how many skylights you're installing and the type of ceiling in your home. Price ranges outlined on the right side are estimates which include the cost of labor for both exterior and interior finishing work when installing a single new skylight or replacing an old skylight. More precise estimates can be provided by a local roofer or contractor in your area.
Below is a video outlining the installation procedures for a VELUX self flashed skylight. If you have specific questions about installation or sizing please call or email us with questions. Our normal response time is within just a few hours.
Specifications
Details
| Skylight Mounting Type | Self Flashed | Cladding Type | Aluminum |
| Required roof pitch (degrees) | 10-60 | Low-E340 | Yes |
| Returnable | 45-Day | Skylight material | Glass |
| UV protection (%) | Tempered: 95.2; Impact: 99.9 | U-Factor without shade | Tempered: 0.45; Impact: 0.42 |
Warranty / Certifications
| Product Warranty | 10-year limited | Florida Product Approval | 13300 |
| Insulated Glass Warranty | 20-year limited | Texas Dept Insurance | Tempered: SK03; Impact: SK14 |
| Hail Warranty | Yes | IAPMO | UES #0199 |
| Energy Star Qualified | All 4 US zones |
