Solar Powered Venting Skylight Systems
Room darkening shade lets you control the light and improve your skylight's energy efficiency- Built-in solar panel and rechargeable battery-operated control system
- No wiring or electrician needed for installation
- Concealed motor operates quietly and efficiently
- Battery-operated radio-frequency remote control with a range of 110 yards
- Integrated rain sensor will close the skylight automatically at the first sign of inclement weather
- Insect screen is included to prevent pests from entering your home

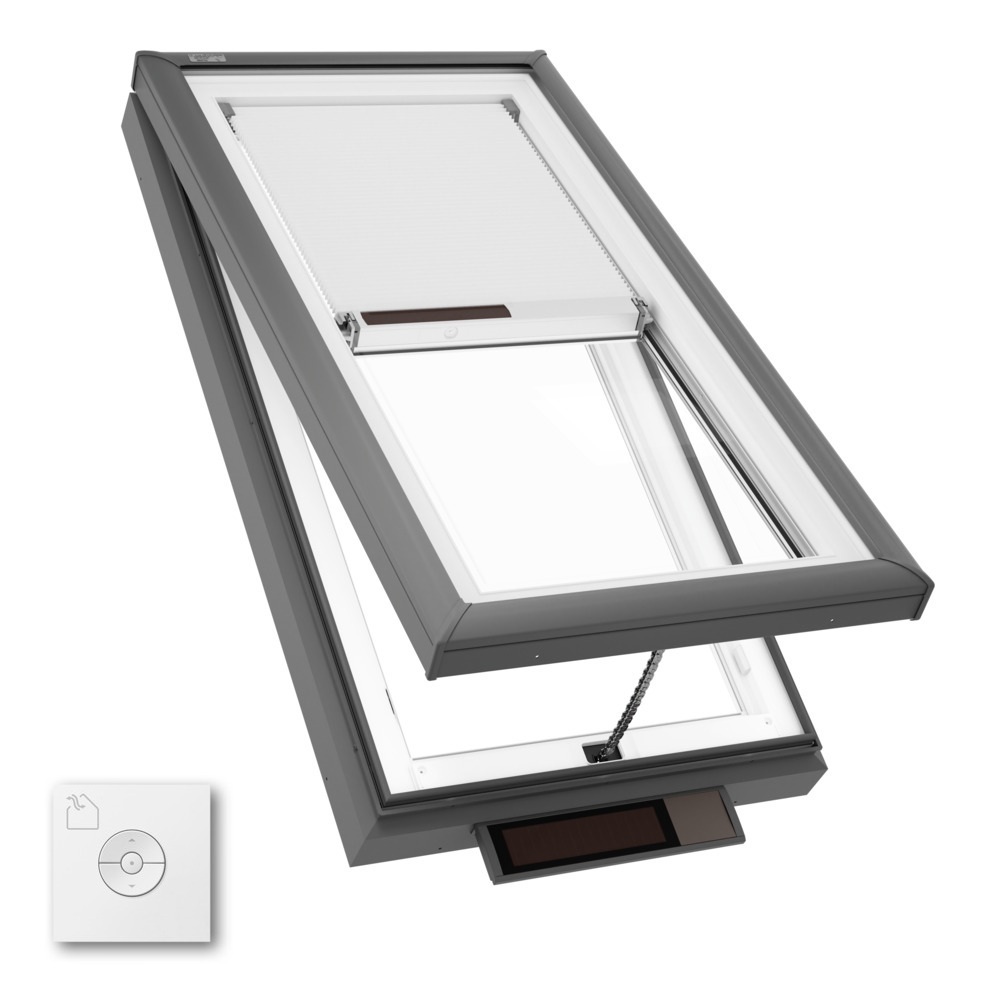

VELUX Venting Skylight Systems

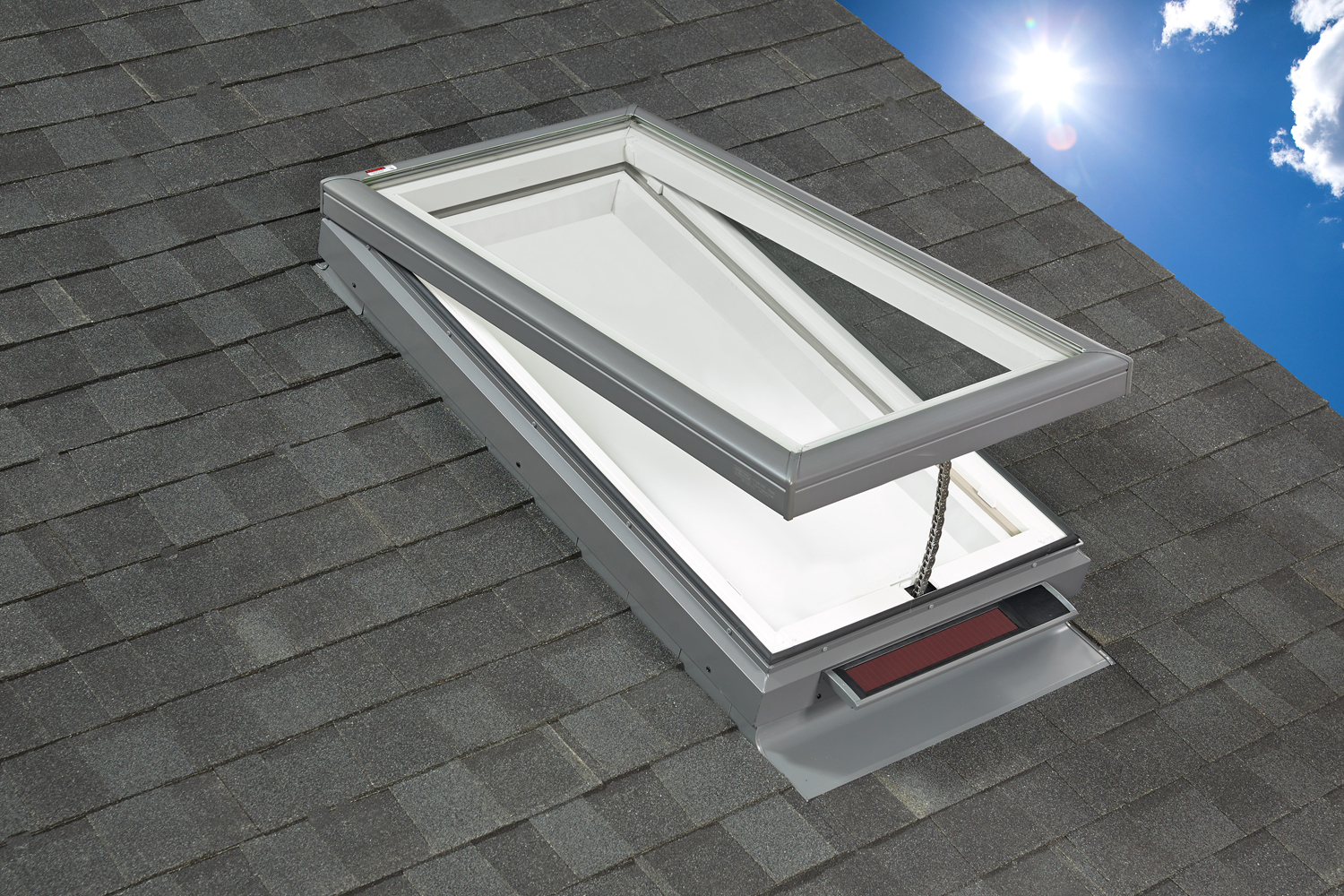

Solar Powered Venting skylights add both natural light and fresh air to any space. The solar panel and rechargeable battery-operated control system are built into the skylight, so no electrical wiring or electrician are needed for installation of these skylights.
The integrated solar powered shade gives you effortless control over that light. The shade also helps block the sun's heat during the summer and retain your home's heat in the winter, which improves your skylight's energy efficiency up to 40%.
Room darkening shade features white double pleated blackout cloth with a honeycomb structure and interior aluminum coating to block even the brightest sunlight.
Wide Variety of Applications
Curb mount skylights can be installed on a flat or sloped roof and with a wide variety of roofing materials. They are great for new skylight installations as well as replacing existing skylights, including old plastic bubble skylights.
Eligible for the VELUX 10-year installation warranty when installed with appropriate VELUX flashing kit (sold separately) on a pitched roof using the included underlayment.
ECL low-profile step flashing interweaves with shingles, shakes, or slate on a roof pitched between 10-60 degrees.
ECW high-profile flashing is pliable and pleated which allows it to be formed to roof tiles on a roof pitched between 14-60 degrees.
SOLAR POWERED VENTING SKYLIGHT FEATURES
Solar Panel
Does not have to be exposed to direct sunlight to function. Captures available sunlight, even indirect light on cloudy days.
Rain Sensor
Integrated rain sensor will automatically close the skylight at the first sign of inclement weather.
Room Darkening Shade
Enjoy the benefits of better light control and improved energy efficiency.
3 Layers of Water Protection
10-year installation warranty when installed with VELUX flashing kit. Skylight gasket, underlayment & flashing work together to prevent leaks.

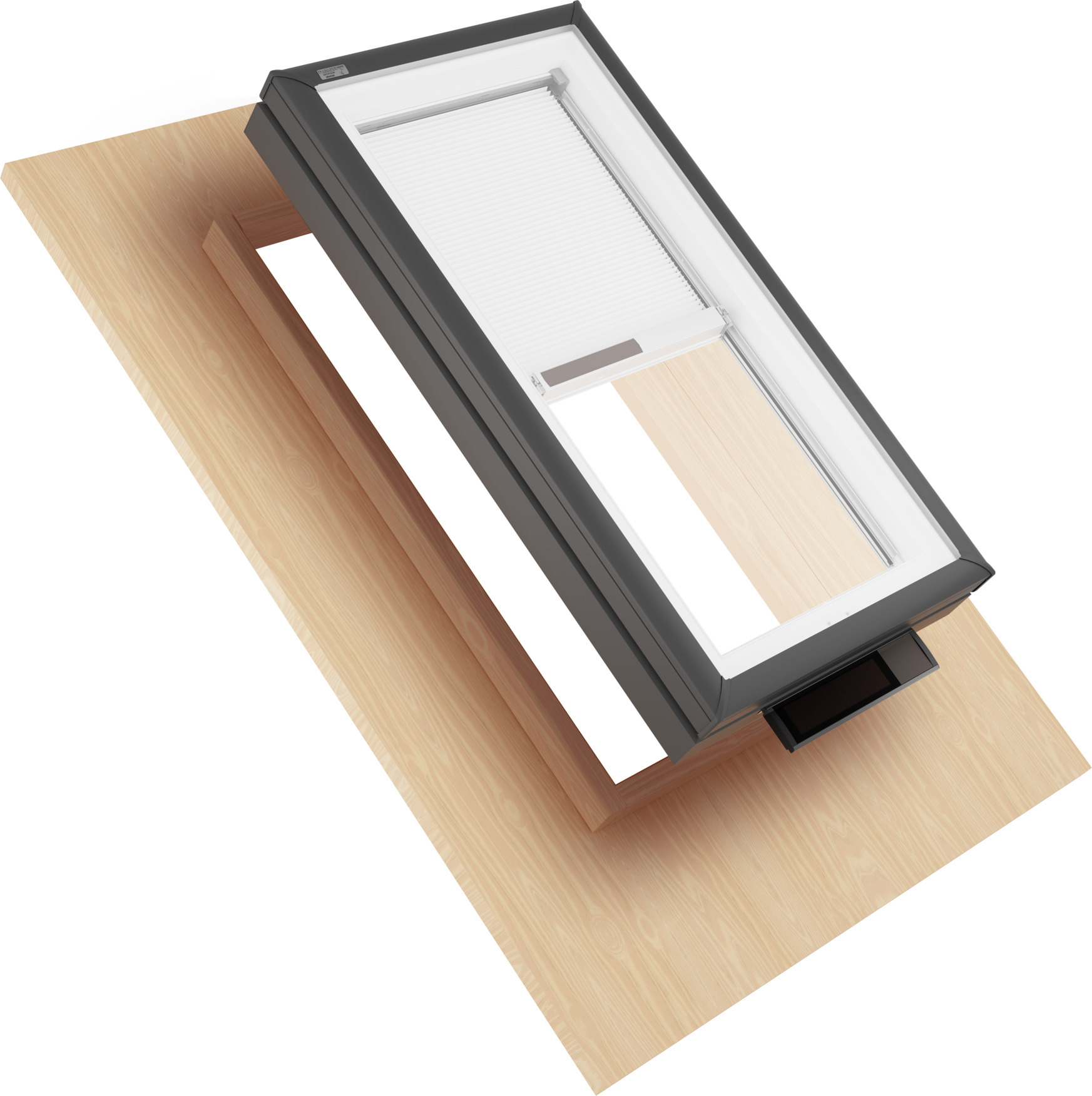

Curb Mount Design
Curb mount skylights can be installed on a flat or sloped roof and with a wide variety of roofing materials.
Insect Screen
VELUX venting skylights include an insect screen that allows you to bring fresh air indoors while keeping pests outdoors.
VCS Skylight Sizes
| VCS Size Code | 2222 | 2234 | 2246 | 3030 | 3046 |
| Inside Curb WxH (in) | 221⁄2 x 221⁄2 | 221⁄2 x 341⁄2 | 221⁄2 x 461⁄2 | 301⁄2 x 301⁄2 | 301⁄2 x 461⁄2 |
| Outside Curb WxH (in) | 251⁄2 x 251⁄2 | 251⁄2 x 371⁄2 | 251⁄2 x 491⁄2 | 331⁄2 x 331⁄2 | 331⁄2 x 491⁄2 |
| Max. Clearance WxH (in) | 265⁄8 x 265⁄8 | 265⁄8 x 385⁄8 | 265⁄8 x 505⁄8 | 345⁄8 x 345⁄8 | 345⁄8 x 505⁄8 |
| VCS Size Code | 3434 | 3737 | 4622 | 4630 | 4646 |
| Inside Curb WxH (in) | 341⁄2 x 341⁄2 | 371⁄2 x 371⁄2 | 461⁄2 x 221⁄2 | 461⁄2 x 301⁄2 | 461⁄2 x 461⁄2 |
| Outside Curb WxH (in) | 371⁄2 x 371⁄2 | 401⁄2 x 401⁄2 | 491⁄2 x 251⁄2 | 491⁄2 x 331⁄2 | 491⁄2 x 491⁄2 |
| Max. Clearance WxH (in) | 385⁄8 x 385⁄8 | 415⁄8 x 415⁄8 | 505⁄8 x 265⁄8 | 505⁄8 x 345⁄8 | 505⁄8 x 505⁄8 |
The cost to install the VELUX solar powered venting skylight depends on your specific project. These estimates show the average cost of buying and installing 1 new skylight, including the cost of labor for both the exterior and interor finish. Speak with a local installer, roofer, or contractor to get a better cost estimate for your project.
Below is a video outlining the installation procedures for a VELUX curb mount skylight. If you have specific questions about installation or sizing please call or email us with questions. Our normal response time is usually within just a few hours.
Specifications
Details
| Cladding Type | Aluminum | Venting Type | Solar Powered |
| Frame Material | Pine | Returnable | 45-Day |
| Glazing type | Laminated glass | Rotates for Cleaning | No |
| Insect screen | Included | Skylight Mounting Type | Curb Mount |
| Low-E | Yes | UV protection | 99.9% (lami glass) |
| Required roof pitch | 0-60 degrees | U-Factor with Shade | 0.33 |
Warranty / Certifications
| Product warranty | 10-year limited | Florida Product Approval | 13560 |
| Insulated glass warranty | 20-year limited | Texas Dept Insurance | SK03 |
| Hail warranty | Yes | IAPMO | UES #0199 |
| Energy Star qualified | All 4 US zones |
|
|
